01
Wheel Positioning
Heavy wheel assemblies are guided onto the machine platform using the integrated remote-controlled lifting system, eliminating dangerous manual handling of assemblies weighing up to 250 kg.
GMR-023
Fixed workshop model
GMR-023 Run Flat Machine Workshop Model
The GMR-023 is built for controlled workshop environments where maintenance teams need repeatable run-flat disassembly, split-rim handling, insert installation, and heavy wheel movement with less manual strain.
Permanent maintenance workshopsIndoor fixed installationWorkshop deployment
GMR-023 · Technical overview
Engineering precision for
mission-critical maintenance.
The GMR-023 Workshop Model is the fixed-installation configuration of the GM Defensive run-flat changer family. Engineered for controlled depot environments, it delivers the highest throughput and most comfortable operating conditions for maintenance teams servicing military and armored vehicle tire assemblies. The machine's hydraulic architecture is calibrated for sustained, high-volume operations where predictability, repeatability, and operator safety are paramount. Every subsystem — from the integrated lift to the hydraulic extraction cylinders — is designed to reduce manual strain while maintaining precise control over forces that can exceed several tons during run-flat insert operations.
16–27"Rim range
2 yrWarranty
15 yrSpare parts
34+Countries
Operational workflow
From wheel intake to
verified reassembly.
A controlled, repeatable service cycle designed for operator safety and equipment protection at every stage.
02
Secure Mounting
The wheel is locked into the machine's centering mechanism with adjustable clamps that accommodate rim diameters from 16 to 27 inches, ensuring stable positioning throughout the service cycle.
03
Controlled Deflation & Hardware Removal
Full tire deflation is verified before locking-ring or beadlock hardware is systematically removed using integrated tooling, following a safety-first sequence to prevent uncontrolled energy release.
04
Hydraulic Bead Separation
Calibrated hydraulic cylinders apply controlled, progressive force to break the tire bead from the rim. This eliminates the dangerous impact-based methods used in manual operations.
05
Run-Flat Insert Extraction
The hydraulic extraction system removes the run-flat insert from the tire cavity with metered force, protecting both the insert for potential reuse and the rim from deformation damage.
06
Reassembly & Verification
New or refurbished inserts are lubricated, aligned, and hydraulically pressed into position. The complete assembly undergoes bead seating, hardware installation, and inflation to operating specifications.
GMR-023 · Engineering systems
Core subsystems that define
the maintenance workflow.
Hydraulic Power Unit
High-pressure hydraulic system with calibrated cylinders delivering controlled, progressive force for bead breaking and insert extraction. Designed for sustained duty cycles in workshop environments.
Integrated Lift System
Remote-controlled wheel lifting mechanism capable of handling complete military wheel assemblies. Reduces manual handling requirements and associated injury risks.
Ring Remover Assembly
Purpose-built tooling for controlled split-rim and locking-ring removal workflows common across NATO-standard military wheel assemblies.
Dual Control Interface
Joystick station for precision operations combined with radio remote control for safe-distance operation. Both systems feature integrated emergency-stop logic.
Safety Architecture
Multi-layer safety system including emergency-stop circuits on all control interfaces, stable handling routines, and operator-safe working envelopes for high-force operations.
Centering & Clamping
Adjustable centering mechanism with heavy-duty clamps designed to accommodate the full 16–27 inch rim range, providing secure, repeatable wheel positioning.
Fleet compatibility
Supports the full spectrum of NATO-standard
military wheel assemblies.
All GM Defensive run-flat machines accommodate rim sizes from 16 to 27 inches, covering the following vehicle families and equivalent platforms worldwide.
HMMWV / Humvee
JLTV (Joint Light Tactical Vehicle)
MRAP (Cougar, MaxxPro, Buffalo, Caiman)
Stryker (M1126, M1128)
HEMTT (M977, M978, M984)
FMTV family
Boxer 8×8
BTR series
LAV / ASLAV
Patria AMV
VBCI
Pandur II
Piranha / LAV III
Product visuals
Real equipment. Real operations.

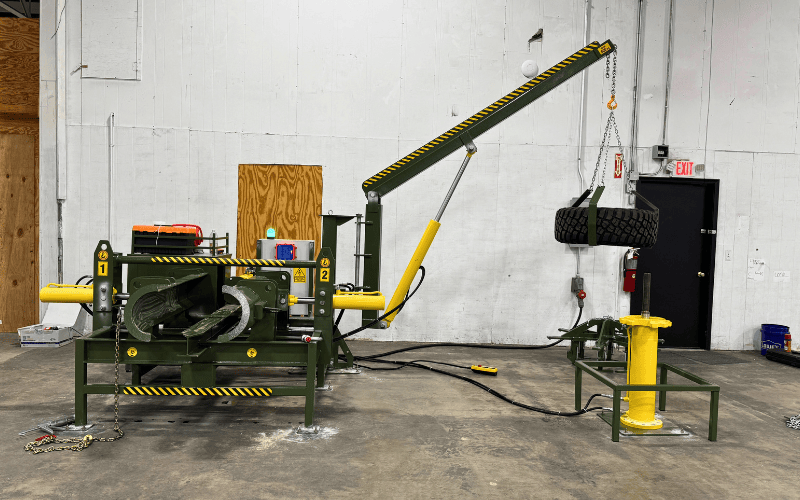

Full System View

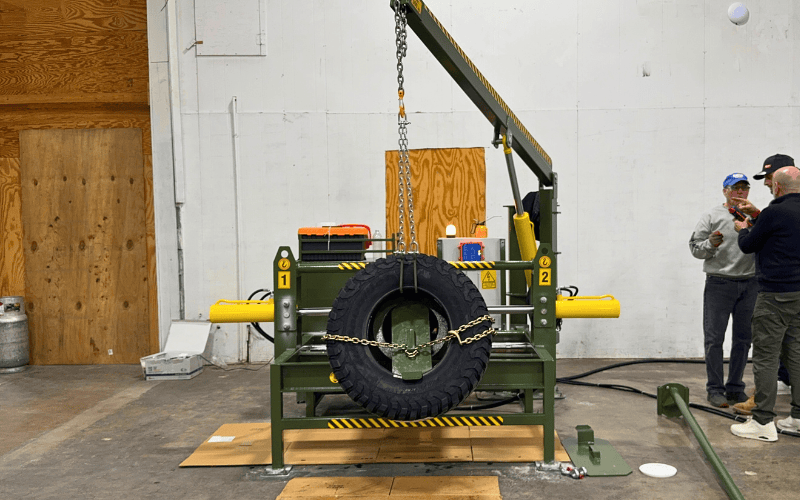

Front Detail

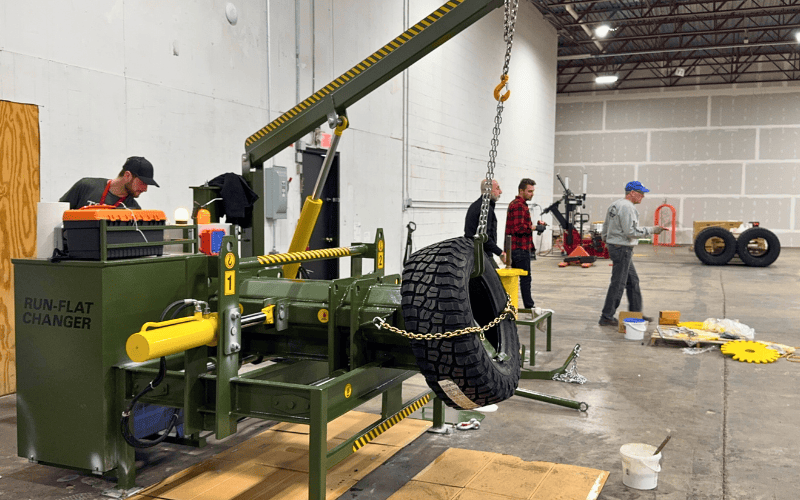

Live Operation

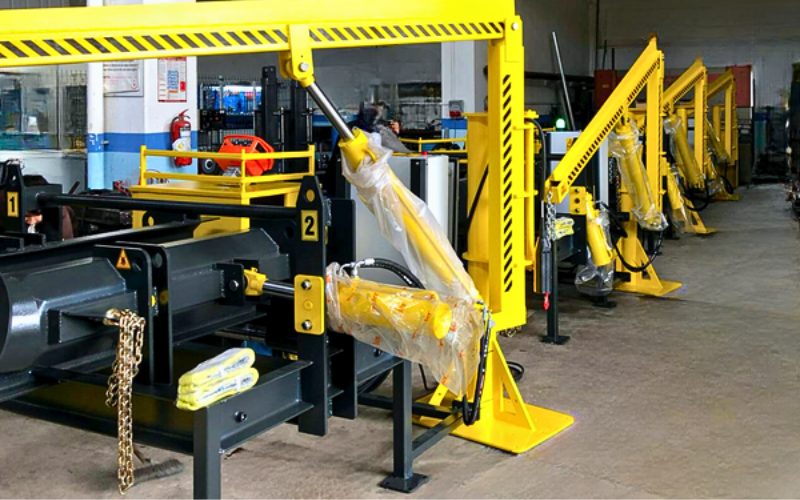

Production

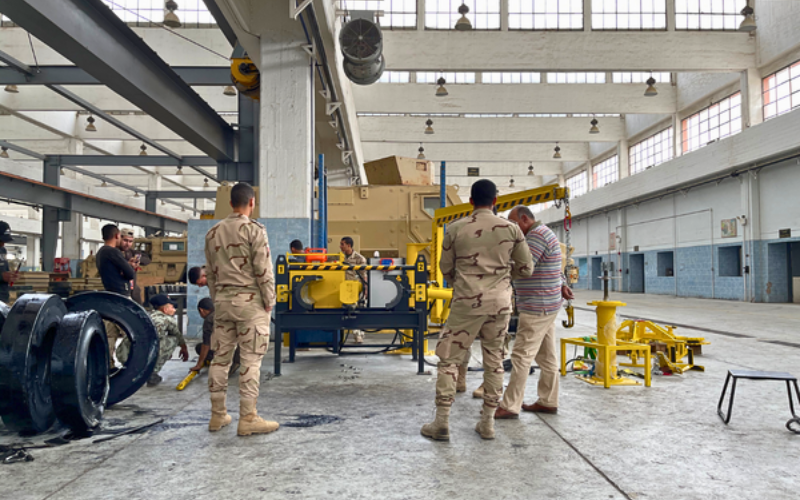

Field Deployment
Technical specifications
GMR-023 configuration data.
Rim Compatibility16–27 inches
Control SystemsJoystick + Radio Remote
Safety SystemsEmergency Stop (all interfaces)
Power Supply380V / 50Hz (configurable)
Hydraulic PressureCalibrated for heavy-duty inserts
Lifting CapacityFull military wheel assemblies
CE Marking
ISO 9001 Quality Management
NATO STANAG Compatible
MIL-STD Compliant Design
Lifecycle support
From delivery to decade-long
operational readiness.
GM Defensive support extends far beyond the machine itself — covering installation, training, spare parts, warranty, and long-term operational planning.
Installation & Commissioning
GM Defensive provides complete installation support including site assessment, foundation planning, utility connections, machine assembly, hydraulic system commissioning, and operational verification before handover.
Operator Training Program
Comprehensive on-site training covers machine operation, safety protocols, maintenance procedures, troubleshooting, and hands-on practice with actual wheel assemblies from the customer's fleet inventory.
Spare Parts Program
15-year spare parts availability guarantee ensures long-term operational continuity. Critical spares kits can be configured based on expected service volumes and operating tempo.
Warranty Coverage
2-year manufacturer warranty covering all mechanical, hydraulic, and electronic components under normal operating conditions. Extended warranty programs available for long-term procurement contracts.
Warranty
2-year comprehensive warranty covering all mechanical, hydraulic, and electronic components. Extended warranty options available for multi-unit procurement programs.
Training
GM Defensive delivers worldwide on-site operator training including machine operation, safety procedures, maintenance protocols, troubleshooting guides, and hands-on practice sessions with actual fleet wheel assemblies.
Delivery
Worldwide delivery with complete installation, commissioning, operator training, and technical documentation. Typical deployment timeline: 8–12 weeks from contract signature to operational readiness.
Ready to deploy
Start your GMR-023 Workshop
procurement process.
Share your fleet details, operating environment, and requirements so the right configuration can be evaluated for your team.
